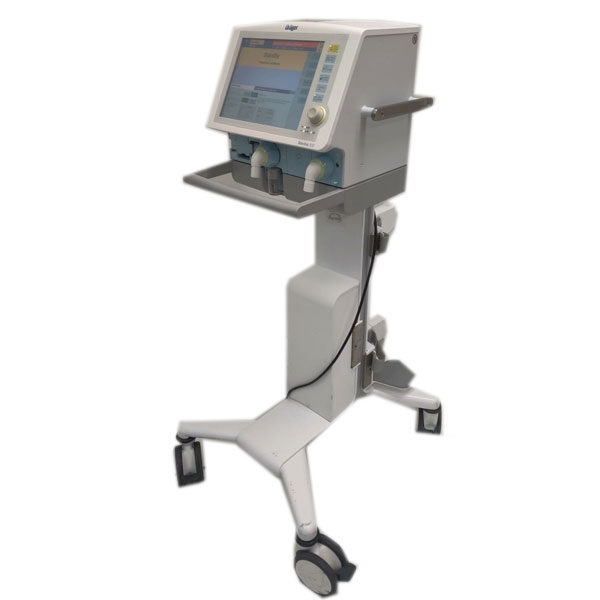

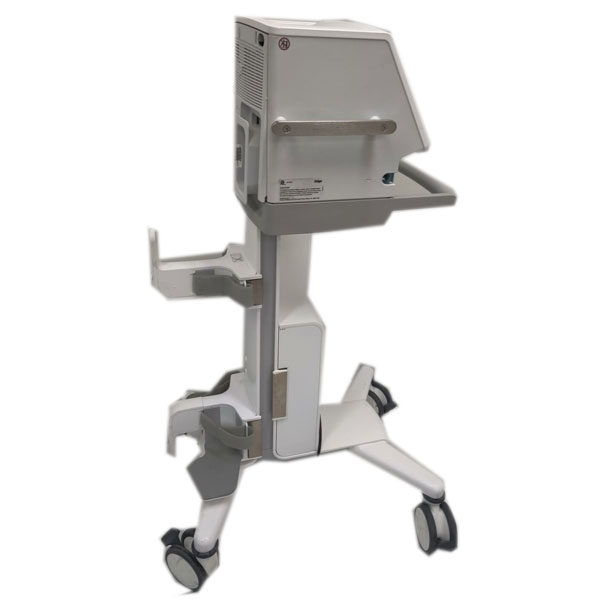

Drager Savina 300

Intuitive for simple operation and quick configuration
The Draeger-wide standardized user interface provides confidence in the use and reduces training time
Quick operational readiness with an automatic device check
Intelligent alarm handling for a quick response to patient alarm situations
Smooth and sealed surfaces for easy cleaning and disinfection
Huge range of ventilation modes (e.g. PC-APRV, VC-MMV, AutoFlow)
Stress-free spontaneous breathing with excellent trigger response time thanks to the turbine
Free-breathing with AutoFlow in volume constant ventilation at a minimum pressure level

Dräger Savina 300 Specifications

Ventilation Modes
VC-CMV / VC-AC
VC-SIMV
VC-MMV (optional)
PC-APRV (optional)
PC-BIPAP1) / PC-SIMV (optional)
PC-AC (optional)
SPN-CPAP

Optional Enhancements
AutoFlow – Automatic adaption of the inspiratory flow in volume orientated ventilation modes
NIV – Non-Invasive Ventilation with optimized alarm systems and automatic leakage compensation
Capnography – Mainstream CO2 measurement
MonitoringPlus – Loops, Trends, user Logbook
LPO – Low-Pressure Oxygen. Independent oxygen supply
Nurse call – Connection for transmitting alarm signals to a central, alarm system

General
Patient type: Adult, pediatric
Respiratory rate: 2/min to 80/min
Inspiration time: 0.2 to 10 s
Tidal volume: 0.05 to 2.0 L, BTPS2) with option PediatricPlus 0.02 to 2.0 L
Inspiratory pressure:: 1 to 99 bar (or hPa or cmH2O)
PEEP/interm. PEEP 0 to 50 bar (or hPa or cmH2O)
Pressure support/ΔPsupp: 0 to 50 bar (or hPa or cmH2O) (relative to PEEP)
Flow acceleration: 5 to 200 bar/s (or hPa/s or cmH2O/s)
O2-concentration: 21 to 100 Vol. %
Trigger sensitivity (Flow trigger): 1 to 15 L/min
Inspiratory termination criterion: 5 to 75 % PIF (peak inspiratory flow)
PC-APRV (optional):
Inspiratory time Thigh 0.2 to 22.0 s
Expiratory time Tlow 0.1 to 22.0 s
Inspiratory pressure Phigh 1 to 95 bar (or HPA or cmH2O)
Expiratory pressure Plow 0 to 50 bar (or HPA or cmH2O)

Displayed Measured Values
Airway pressure measurements Max. airway pressure, plateau pressure, mean airway pressure, PEEP 0 to 99 mbar (or hPa or cmH2O)
Minute volume (MV): Total MV, spontaneous MV 0 to 99 L/min, BTPS
Tidal volume: Inspiratory VT, expiratory VTe, VTspon 0 to 3999 mL, BTPS
Total respiratory rate: Total and spontaneous respiratory rate, 0 to 150/min
Inspiratory O2-concentration: 21 to 100 % Vol.
End-tidal CO2 concentration: EtCO2 0 to 100 mmHg (or 0 to 13.2 Vol% or 0 to 13.3 kPa)
Breathing gas temperature: 18 to 48 °C (64.4 to 118.4 °F)
Curve displays: Paw(t), Flow (t), Tidal volume (t), CO2 (t)
Ventilation ratio (I:E): 1:150 to 150:1
Compliance C: 0.5 to 200 mL/bar (or mL/hPa or mL/cmH2O)
Resistance R: 3 to 300 bar/L/s (or hPa/L/s or cmH2O/L/s)
Leakage minute volume MVleak: 0 to 100 %
Rapid shallow breathing RSB: 0 to 9999 (1/min/L)
Special Maneuvers (optional):
Intrinsic PEEP PEEPi 0 to 100 bar (or hPa or cmH2O)
Exp. Hold

Alarms
Airway pressures: high/low
Expiratory minute volume: high/low
Tidal volume: high / low
Apnea-alarm time: 15 to 60 sec
Spontaneous breathing frequency: high
Inspiratory O2-concentration: high / low
Inspiratory breathing gas temperature: high
EtCO2: high / low

Performance Data
Maximum (continuous) inspiratory flow: 250 L/min
Valve response time T0…90: ≤ 5 ms
Control principle: time-cycled, volume-controlled, pressure limited
Safety valve opening pressure: 120 bar (or hPa or cmH2O)
Emergency valve: automatically enables spontaneous breathing with filtered ambient air if air and O2 supply should fail.
Automatic gas switch-over function if O2 supply fails
Output for pneumatic medication nebulizer: synchronized with inspiration
Leak compensation:
optimized patient-ventilator synchrony adjusts the flow trigger and the inspiratory termination criteria for leaks.
tube application: up to 10L/min
NIV VC-modes: up to 25 L/min
NIV PC-modes: unlimited

Operating Data
Mains power connection: 100 V to 240 V, 50/60 Hz
Current consumption: max. 1.3 A at 240 V, max. 3.4 A at 100 V
Battery: internal typically 45 min (optional extension up to 5 h)
Turbine exchange interval: 8 years, with no limit on operating hours during this interval

Digital Machine Outputs
Digital output and input via a RS 232 C interface
Dräger MEDIBUS and MEDIBUS.X

Gas Supply
Air Turbine technology
O2 gas supply 3 bar (43.5 psi) – 10 % up to 6 bar (87 psi)

Dimensions and Weights
Dimensions W x H x D (without trolley) 460 x 383 x 364 ±2 mm (18.11 x 15.08 x 14.33 ±0.08 inch)
Weight (basic device) approx. 26 kg (57.3 lbs) without trolley
Diagonal screen size 12″ TFT color touch screen
