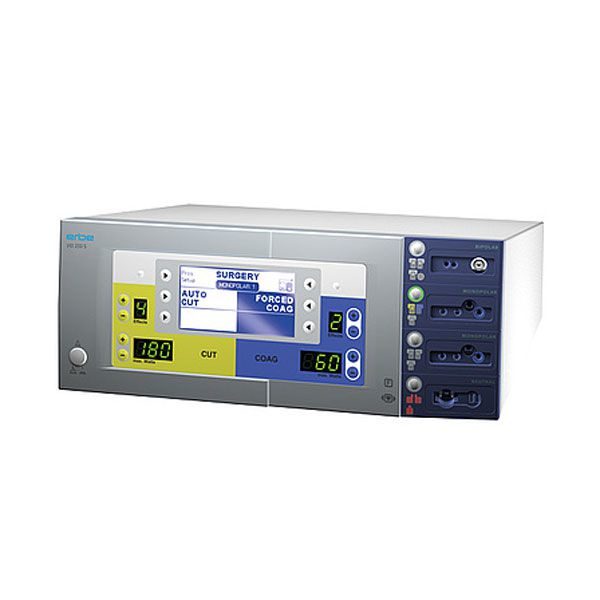

ERBE VIO 200D Features
With the VIO electrosurgical system, Erbe has set innovative standards aimed at providing optimum surgical support for almost any discipline as well as including a range of additional indications. The Erbe VIO 200D generator offers automatic power adjustment for all control technologies.
Automatical dosage of power.
New and improved CUT and COAG functions.
Modular software and hardware.
Widest choice of socket modules and functions.
ReMode – new activation via „remote control“ straight from the sterile field.
The VIO 200 D – the master control unit for other modules of the VIO electrosurgical system, e.g. the APC
2.ERBE Vio 200 D Specifications
Width: 16.14 in (410 mm)
Depth: 14.96in (380mm)
Weight: 9.5kg (20.94)
Intermittent Operation: ON time 25% (e.g. activated for 10 sec. / deactivated for 30 sec.)
Ambient conditions for transport and storage of unit
Temperature: -40 °C to +70 °C
Relative Humidity: 10 % – 95 %
Ambient conditions for operating of the unit
Temperature: +10°C to +40°C
Relative Humidity: 15% – 80%, non-condensing
Maximum cut power: 200 watts at 500 Ohm
Maximum COAG power: up to 200 watts
NE safety system: NESSY
Frequency: 350 kHz
Line voltage 100 V – 120 V / 220 V – 240 V ± 10 %
Power frequency 50 / 60 Hz
Line current max. 8 A / 4 A
Power consumption in standby mode 40 watts
Power consumption at max. HF power 500 watts / 920 VA
Potential equalization connection Yes
Power fuse T 8 A / T 4 A
