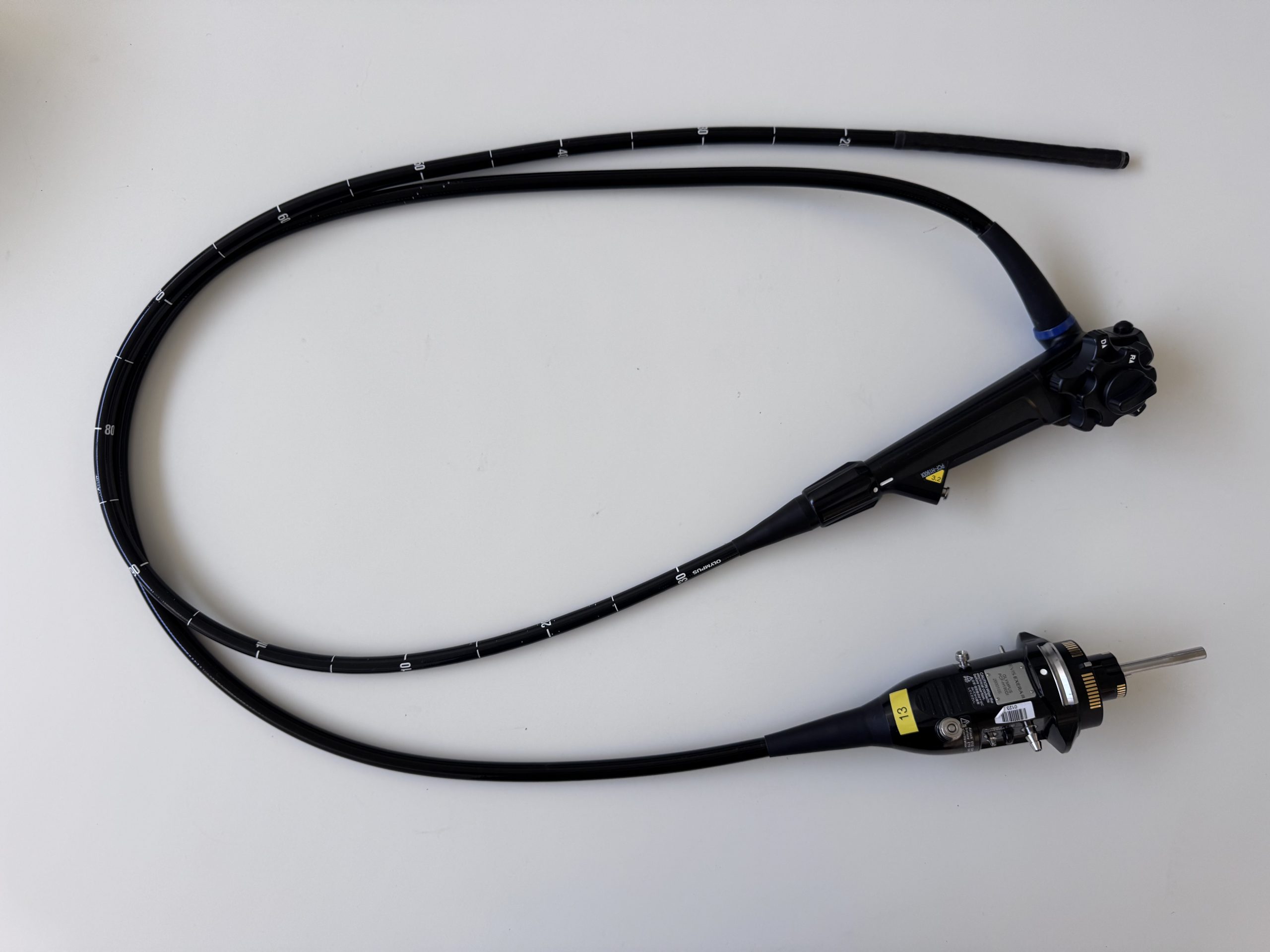

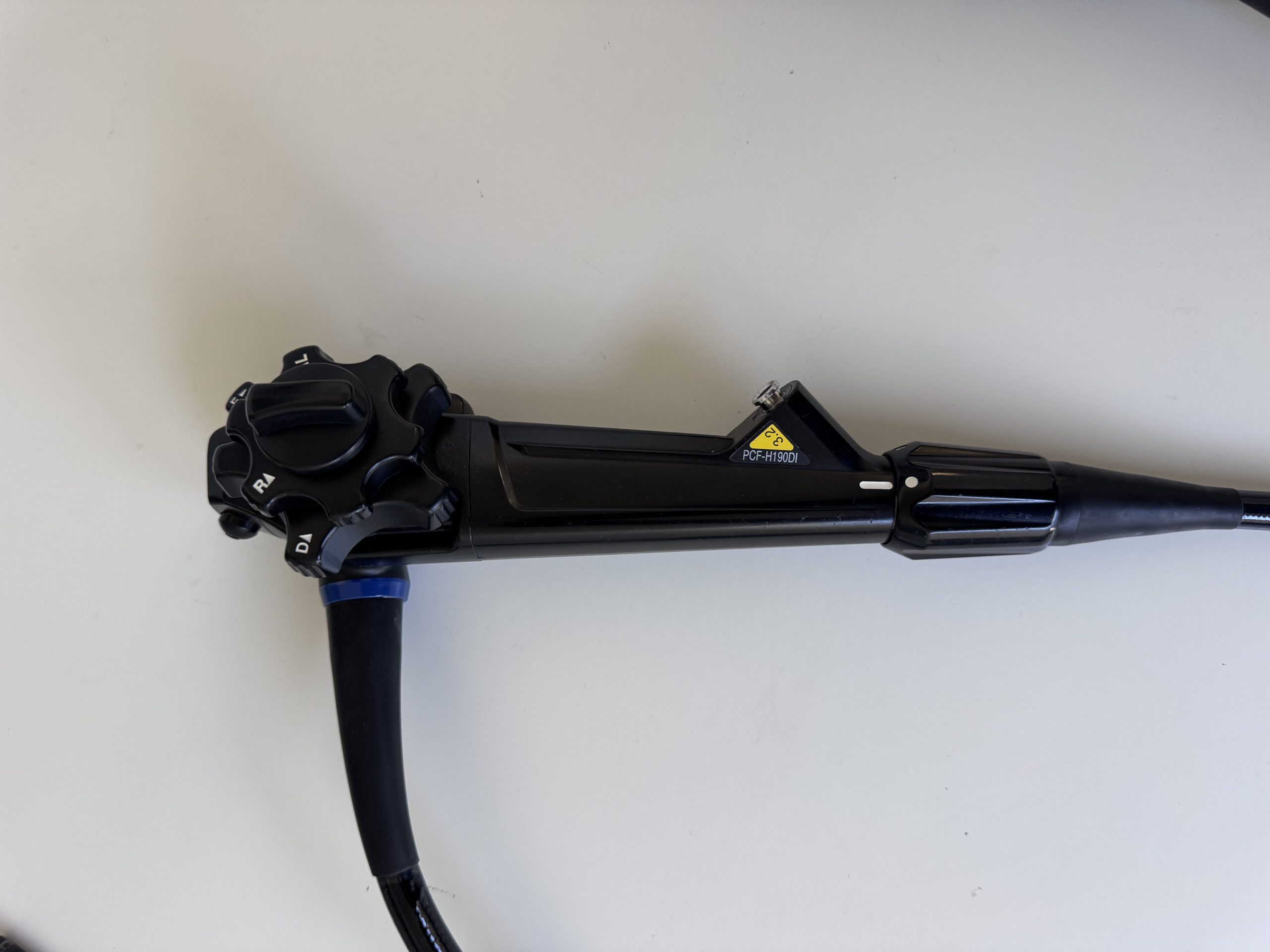

Olympus PCF-H190DI EVIS EXERA III HD Colonovideoscope
The Olympus PCF-H190DI EVIS EXERA III is a refurbished and recertified slim high-definition colonovideoscope designed for diagnostic and therapeutic lower gastrointestinal procedures. It features Narrow Band Imaging, Responsive Insertion Technology, ScopeGuide compatibility, a 170° field of view, an auxiliary water jet, and a 3.2 mm instrument channel.
$13,300.00
Olympus PCF-H190DI EVIS EXERA III HD Colonovideoscope with ScopeGuide
The Olympus PCF-H190DI EVIS EXERA III Colonovideoscope combines high-definition imaging, a slim insertion design, and advanced scope-positioning technology for diagnostic and compatible therapeutic procedures within the lower gastrointestinal tract.
The PCF-H190DI provides a wide 170° forward-viewing field of view and a depth of field ranging from 2 to 100 mm. Its HDTV-compatible imaging system supports detailed endoscopic observation, while Olympus Narrow Band Imaging technology enhances the visualization of mucosal structures and vascular patterns.
The scope incorporates Olympus Responsive Insertion Technology, which combines High Force Transmission, Passive Bending, and adjustable variable stiffness. These technologies are designed to improve scope handling, torque response, insertion control, and navigation through acute bends in the colon.
High Force Transmission supports pushing, pulling, and rotational control, while Passive Bending allows the insertion tube to move more smoothly through challenging anatomical bends. The variable-stiffness adjustment ring allows the operator to change the rigidity of the insertion tube according to procedural requirements.
The PCF-H190DI also features integrated ScopeGuide compatibility. When connected to the Olympus UPD-3 Endoscope Position Detecting Unit, ScopeGuide provides real-time three-dimensional visualization of the scope’s position and configuration during insertion. This functionality can help the operator recognize and manage scope loops during colonoscopy.
The scope has an 11.7 mm distal-end diameter and an 11.8 mm insertion-tube diameter. Four-way tip angulation provides 180° movement upward and downward and 160° movement to both the right and left.
A 3.2 mm instrument channel accommodates compatible endotherapy accessories for diagnostic and therapeutic procedures. The auxiliary water-jet channel helps clear mucus, blood, and debris from the examination area to maintain visibility during observation and treatment.

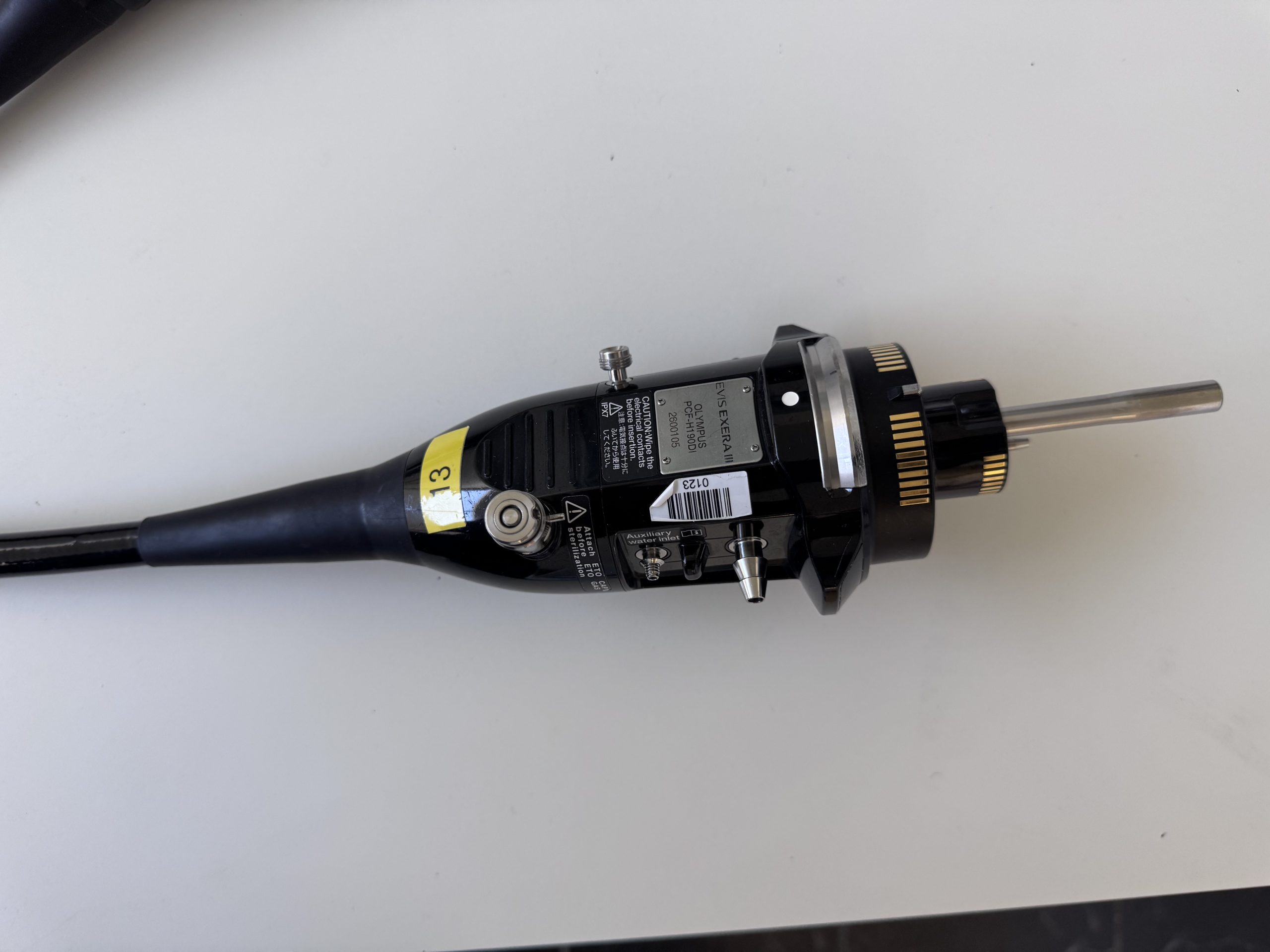

The waterproof one-touch connector is fully submersible and eliminates the need for a separate water-resistant cap during reprocessing. Its design also helps simplify connection and setup between procedures.
The PCF-H190DI is the intermediate-length configuration, with a working length of 1,330 mm and a total length of 1,655 mm. It is designed for use with the Olympus CV-190 Video System Center, CLV-190 Xenon Light Source, and compatible Olympus endoscopy equipment.
Key Features
- EVIS EXERA III HD colonovideoscope
- High-definition HDTV-compatible imaging
- Olympus Narrow Band Imaging technology
- Wide 170° field of view
- Forward-viewing optical system
- Depth of field from 2 to 100 mm
- Responsive Insertion Technology
- High Force Transmission
- Passive Bending
- Adjustable variable stiffness
- Integrated ScopeGuide compatibility
- Real-time 3D scope-position visualization with the UPD-3
- Slim 11.7 mm distal-end diameter
- Slim 11.8 mm insertion-tube diameter
- 3.2 mm instrument channel
- Auxiliary water-jet channel
- Four-way tip angulation
- Waterproof one-touch connector
- Fully submersible connector design
- Intermediate 1,330 mm working length
- Compatible with the Olympus CV-190 and CLV-190 platform
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Olympus |
| Model | PCF-H190DI |
| Model Series | PCF-H190DL/I |
| Product Family | EVIS EXERA III |
| Device Type | HD colonovideoscope |
| Viewing Direction | Forward viewing |
| Field of View | 170° |
| Depth of Field | 2–100 mm |
| Distal-End Diameter | 11.7 mm |
| Insertion-Tube Diameter | 11.8 mm |
| Working Length | 1,330 mm |
| Total Length | 1,655 mm |
| Instrument-Channel Diameter | 3.2 mm |
| Minimum Visible Distance | 3.0 mm from the distal end |
| Up Angulation | 180° |
| Down Angulation | 180° |
| Right Angulation | 160° |
| Left Angulation | 160° |
| Imaging Technologies | HDTV and Narrow Band Imaging |
| Responsive Insertion Technology | Yes |
| High Force Transmission | Yes |
| Passive Bending | Yes |
| Variable Stiffness | Yes |
| Auxiliary Water Jet | Yes |
| ScopeGuide Compatibility | Yes |
| Position Detecting Unit | Olympus UPD-3 |
| Connector | Waterproof one-touch connector |
| Video-System Compatibility | Olympus CV-190 |
| Light-Source Compatibility | Olympus CLV-190 |
